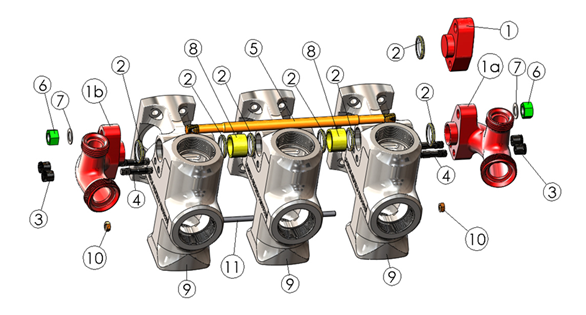

| Fluid-End/Flange Discharge Section Subassembly |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Plunger Size |
|
|
Loc |
|
Qty |
|
3-3/8 inch |
|
4-inch |
|
4-1/2 inch |
|
5-inch |
|
6-inch |
| Flange, Discharge,
HT-400™, Blank |
|
1 |
|
1 |
|
|
|
316.22980.KOP |
316.22980.KOP |
|
316.22980.KOP |
|
316.22980.KOP |
| Flange, Discharge,
HT-400™, Curved, Right Hand |
|
1a |
|
1 |
|
316.21676.KOP |
316.23019.KOP |
316.23019.KOP |
|
316.23019.KOP |
|
316.23019.KOP |
| Flange, Discharge,
HT-400™, Curved, Left Hand |
|
1b |
|
1 |
|
316.21677.KOP |
316.23017.KOP |
316.23017.KOP |
|
316.23017.KOP |
|
316.23017.KOP |
| Seal, Discharge Passage,
HT-400™ |
|
2 |
|
6 |
|
315.27117.KOP |
316.2547.KOP |
|
316.2547.KOP |
|
316.2547.KOP |
|
316.2547.KOP |
| Nut, 1-14 NF, Internal
Wrenching, 1.03 TL |
|
3 |
|
4 |
|
316.11621.KOP |
316.11621.KOP |
316.11621.KOP |
|
316.11621.KOP |
|
316.11621.KOP |
| Stud, HT-400™, Fluid End
To Thick Discharge Flange |
|
4 |
|
4 |
|
316.23013.KOP |
|
|
316.23013.KOP |
|
316.23013.KOP |
|
316.23013.KOP |
| Bolt, Tie,
1.375-12 UNF x 32.4 in., Top, Fluid End, HT-400™, TC |
5 |
|
1 |
|
316.27488.KOP |
316.27488.KOP |
316.27488.KOP |
|
316.27488.KOP |
|
316.27488.KOP |
| Nut, Top Tie Bolt,
HT-400™, TC |
|
6 |
|
2 |
|
316.25501.KOP |
316.25501.KOP |
316.25501.KOP |
|
316.25501.KOP |
|
316.25501.KOP |
| Washer, Hardened, 2.31
O.D. x 1.43 I.D., For Top Tie Bolt, |
|
7 |
|
2 |
|
316.22493.KOP |
316.22493.KOP |
316.22493.KOP |
|
316.22493.KOP |
|
316.22493.KOP |
| Spacer, Inner, Discharge
Passage Seal, HT-400™ |
|
8 |
|
2 |
|
316.2145.KOP |
|
316.2545.KOP |
|
316.2545.KOP |
|
316.2545.KOP |
|
316.2545.KOP |
| Fluid End Section,
HT-400™ Pump, Not Sleeved |
|
9 |
|
3 |
|
316.21951.KOP |
316.22982.KOP |
316.23951.KOP |
|
316.24951.KOP |
|
316.27951.KOP |
| Nut, Elastic, Stop,
3/4-in., 16NF |
|
10 |
|
2 |
|
70.32760.KOP |
|
|
|
70.32760.KOP |
|
70.32760.KOP |
|
70.32760.KOP |
| Bolt, Bottom, Tie,
HT-400, Type Certified |
|
11 |
|
1 |
|
316.23011.KOP |
|
|
316.23011.KOP |
|
316.23011.KOP |
|
316.23011.KOP |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
