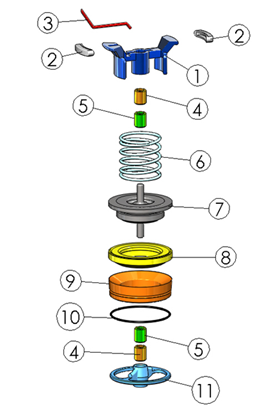

| Suction Valve Subassembly |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Plunger Size |
|
|
Loc |
|
Qty |
|
3-3/8 inch |
|
4-inch |
|
4-1/2 inch |
|
5-inch |
|
6-inch |
| Retainer, Stop and
Spring, HT-400™, Mach. Cast |
|
1 |
|
3 |
|
316.22977.KOP |
316.22977.KOP |
316.22242.KOP |
|
316.25840.KOP |
|
316.25840.KOP |
| Boot, Suction and Stop,
HT-400™ |
|
2 |
|
6 |
|
316.25233.KOP |
316.25233.KOP |
316.25233.KOP |
|
316.25233.KOP |
|
316.25233.KOP |
| Spring, Lock, HT-400 |
|
3 |
|
3 |
|
316.2125.KOP |
|
316.2125.KOP |
|
316.22252.KOP |
|
316.22253.KOP |
|
316.22253.KOP |
| Liner, Two Piece
Bushing, Valve Guide, HT-400™, Brass |
|
4 |
|
6 |
|
316.22005.KOP |
316.22005.KOP |
316.22005.KOP |
|
316.22007.KOP |
|
316.22007.KOP |
| Insert, Two Piece
Bushing, Valve Guide, Special, HT-400™ |
|
5 |
|
6 |
|
316.22004.KOP |
316.22004.KOP |
316.22004.KOP |
|
316.22006.KOP |
|
316.22006.KOP |
| Spring, Valve, HT400, 36
lb/in |
|
6 |
|
3 |
|
316.2108.KOP |
|
316.2108.KOP |
|
316.2308.KOP |
|
316.27259.KOP |
|
316.27259.KOP |
| Valve, HT-400, Frac |
|
7 |
|
3 |
|
316.21007.KOP |
316.21007.KOP |
316.22048.KOP |
|
316.24027.KOP |
|
316.24027.KOP |
| Insert, Valve,
HT-400™, Urethane, Acid/ Frac Service (Yellow) |
8 |
|
6 |
|
316.21048.KOP |
316.21048.KOP |
316.22046.KOP |
|
316.24026.KOP |
|
316.24026.KOP |
| Insert, Valve, HT-400™,
Urethane, Standard Service (Brown) |
|
8 |
|
6 |
|
316.21006.KOP |
316.21006.KOP |
316.22049.KOP |
|
316.24037.KOP |
|
316.24037.KOP |
| Seat Valve, HT-400™,
Tapered |
|
9 |
|
3 |
|
316.21008.KOP |
316.21008.KOP |
316.22047.KOP |
|
316.24024.KOP |
|
316.24024.KOP |
| O-ring, 90 Duro |
|
10 |
|
3 |
|
8.34037.KOP |
|
8.34037.KOP |
|
8.34041.KOP |
|
8.34045.KOP |
|
8.34045.KOP |
| Retainer, Guide Bushing,
HT-400, Tapered Seat Bore |
|
11 |
|
3 |
|
316.21096.KOP |
316.21096.KOP |
316.23953.KOP |
|
316.24043.KOP |
|
316.24043.KOP |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
