"EMSCO" MUD PUMPS
main menu • contacts • table of contents • disclaimer
FB1300/1600
DESCRIPTION |
PART NO. |
DESCRIPTION |
PART NO. |

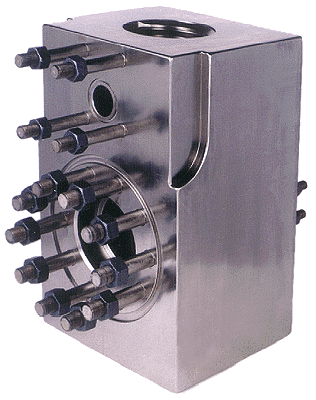

Fluid End, Studded |
6316-0357-00 |
Cylinder Head Seal |
6316-0369-00 |
Crosshead Extension Rod |
6316-0028-00 |
Liner Seal |
6316-0373-00 |
Valve Pot Cover |
6316-0039-00 |
Stuffing Box |
6397-0544-00 |
Discharge Manifold |
6316-0043-00 |
Stuffing Box Lock Spring |
6397-0546-00 |
Valve Cover Seal |
6316-0092-00 |
Stuffing Box Spring |
6397-0548-00 |
Baffle |
6316-0093-00 |
Upper Valve Guide |
6397-0575-00 |
Lower Valve Guide Bushing |
6316-0096-00 |
Upper Valve Guide Retainer Plate |
6397-0603-00 |
Liner End Cover |
6316-0164-00 |
Retainer Plate Screw |
7501-0051-00 |
Liner Lock Ring |
6316-0333-00 |
Ring Joint Gasket |
7601-0661-11 |
Lower Valve Guide |
6316-0354-00 |
Discharge Manifold O-ring |
7602-1600-25 |
Piston Rod |
6316-0359-00 |
Liner Lock Ring O-ring |
7602-1600-44 |
Lock Bolt |
6316-0360-00 |
Suction Manifold O-ring |
7602-1600-61 |
Cylinder Threaded Ring |
6316-0361-00 |
Single Lip Oil Seal |
7602-2131-47 |
Cylinder Head |
6316-0362-00 |
Double Lip Oil Seal |
7602-2132-76 |
Alignment Ring |
6316-0363-00 |
Soft Wire, 1/16" X 6’ |
7602-5280-72 |
Cylinder Head Plug |
6316-0364-00 |
Crosshead |
6316-0022-00 |
Wear Plate |
6316-0365-00 |
Crosshead Guide (Lower) |
6316-0081-00 |
Liner Threaded Ring |
6316-0366-00 |
Crosshead Pin |
6316-0087-00 |
Liner Lock |
6316-0367-00 |
Crosshead Guide (Upper) |
6316-0182-00 |
F800/1000
| DESCRIPTION | F-800 PART NO. | F-1000 PART NO. |

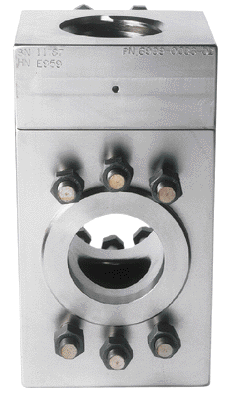

| Fluid End Module, Studded | 6999-0086-02 | 6999-0086-02 |
| Threaded Ring | 6999-0089-00 | 6999-0089-00 |
| Crosshead Extension Rod | 6320-0041-00 | 6319-0020-00 |
| Liner Cage | 6319-0026-00 | 6319-0026-00 |
| Valve Pot Cover | 6319-0027-00 | 6319-0027-00 |
| Cylinder Head Plug | 6319-0031-00 | 6319-0031-00 |
| Baffle | 6320-0028-00 | 6319-0070-00 |
| Piston Rod Clamp | 6320-0072-00 | 6319-0071-10 |
| Piston Rod | 6320-0030-00 | 6319-0075-00 |
| Valve Cover Seal | 6319-0076-00 | 6319-0076-00 |
| Lower Valve Guide | 6319-0087-00 | 6319-0087-00 |
| Lower Valve Guide Locking Clip | 6319-0089-00 | 6319-0089-00 |
| Cylinder Head | 6319-0090-00 | 6319-0090-00 |
| Liner End Cover | 6319-0121-00 | 6319-0121-00 |
| Stuffing Box Spring | 6397-0564-00 | 6397-0539-00 |
| Stuffing Box Lock Spring | 6397-0565-00 | 6397-0540-00 |
| Stuffing Box | 6397-0560-00 | 6397-0543-00 |
| Upper Valve Guide | 6397-0575-00 | 6397-0575-00 |
| Upper Valve Guide Retainer Plate | 6397-0603-00 | 6397-0603-00 |
| Lower Valve Guide Bushing | 6316-0096-00 | 6316-0096-00 |
| Retainer Plate Screw | 7501-0051-00 | 7501-0051-00 |
| Ring Joint Gasket | 7602-0661-11 | 7602-0661-11 |
| Suction Manifold O-ring | 7602-1600-61 | 7602-1600-61 |
| Discharge Manifold O-ring | 7602-1610-46 | 7602-1610-46 |
| Single Lip Oil Seal | 7602-2131-97 | 7602-2132-05 |
| Double Lip Oil Seal | 7602-2132-74 | 7602-2132-75 |
| Liner Seal | 7602-2200-32 | 7602-2200-032 |
Kandle Oilfield Products, Inc. ("KOP") is an indepentdent manufacturer of replacement parts. KOP is neither a licensee, nor is it affliated with any of the original equipment manufacturers named above. The manufacturers names or trademarks used herein are solely for identification purposes and are not intended by KOP to cause confusion as to the source, sponsorship, or quality of the parts manufactured by KOP. The original manufacturers named above and throughout this catalog do not sponsor, promote, warranty or endorse KOP's products.
Emsco is a registered trademark of Continental-Emsco. KOP is in no way
affiliated with this company.
All KOP parts are marked with KOP's distinctive mark(s) and part numbers are for
identification purposes only.
